Aluminium Tactile Studs – Lightweight, Anodised Warning Indicators

Also known as: warning buttons, tactile buttons, tactile domes, truncated domes and tactile warning indicators. Whichever term your specification uses, the product on this page is the same aluminium tactile studs.

Overview

Aluminium tactile studs sit between polyurethane and stainless steel: they have a metallic appearance and rigidity, but at lower material cost and a fraction of the weight. For a project of 20,000 studs the weight saving runs to several hundred kilograms, which matters for air freight and for installers carrying cartons across a site. MetalX machines the studs in Mumbai from aluminium bar and can anodise them in clear, gold, black, bronze or blue.

Anodising hardens the surface and gives colour that is part of the metal rather than a coating, so contrast against the floor is durable. The concentric ring pattern is machined before anodising.

When to choose aluminium

• Large indoor or covered projects where cost per stud drives the decision but a metal finish is required.
• Export projects where freight is a significant part of the landed cost.
• Lightweight structures such as footbridges, raised floors and modular buildings.

For exterior pavements in coastal or salted environments, or platform edges with heavy trolley traffic, stainless steel tactile studs remain the better long-term choice.

What aluminium changes on a large project

Aluminium has about a third of the density of stainless steel. On a mall or campus with 30,000 studs that is a difference of several hundred kilograms in freight and in what installers carry across the site, and aluminium bar is cheaper than stainless steel bar. The stud is machined to the same Ø35 mm, 4.5 mm profile as our stainless steel range, so nothing changes for the user. Anodising hardens the surface and gives colour that is part of the metal rather than a coating.

Natural or anodised, and which colour

Where aluminium studs belong, and where they do not

Interior concourses, malls, offices, schools, covered platforms, footbridges and raised floors are all good uses. Avoid aluminium on coastal exteriors, around pools, and on floors cleaned with strongly alkaline chemicals, all of which dull or pit the surface; use SS 316 there. Avoid it too on heavy trolley routes where a harder metal keeps its pattern longer.

Fixing

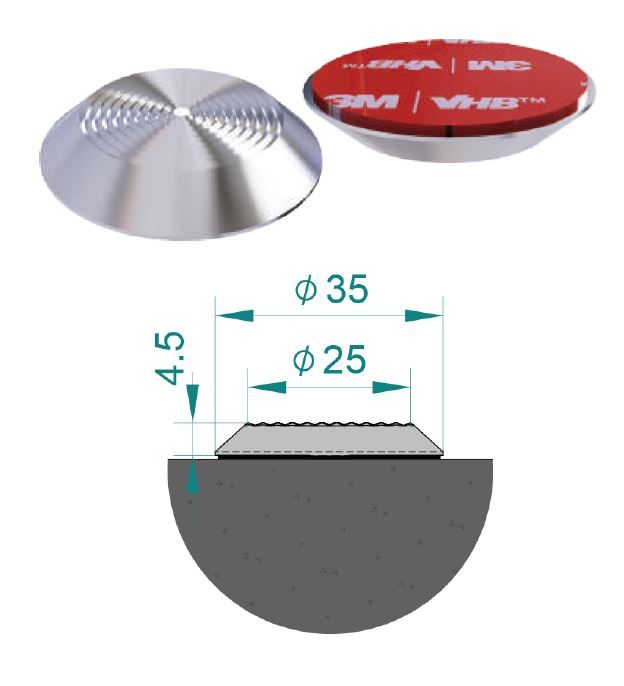

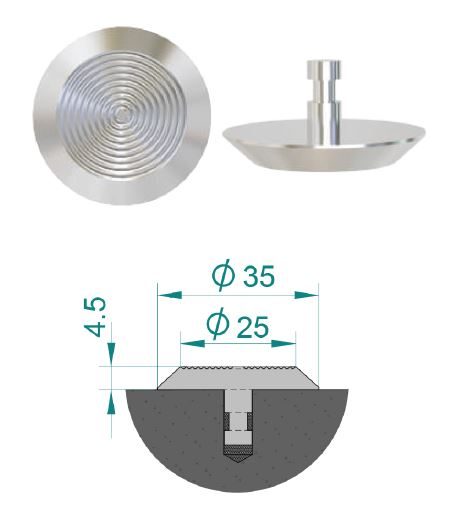

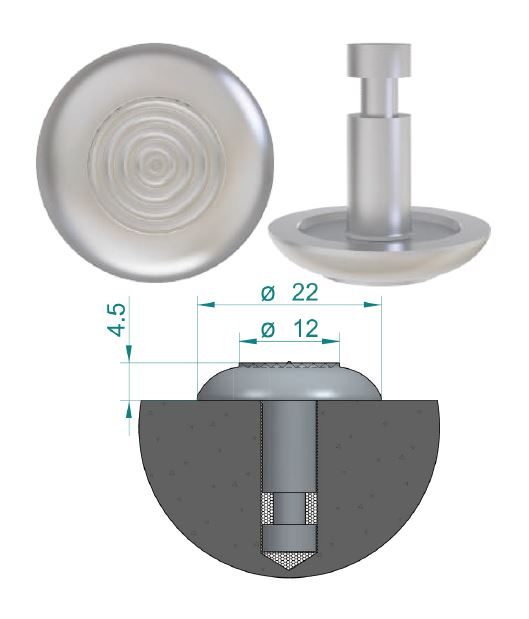

Stem-fixed studs go into Ø8 mm holes with epoxy; the truncated (flat-top) type has the same stem and is used on ADA and ISO drawings. Self-adhesive studs with 3M tape suit polished tile and stone in occupied buildings. Use a nylon or rubber mallet so anodised surfaces are not marked.

How many studs do you need?

Same grid as every stud we make: 400 per square metre and 240 per running metre of a 600 mm-deep field. A carton of 1,000 aluminium studs weighs roughly a third of the stainless steel equivalent.

What affects the price

1. Finish: natural is the base; anodising adds a process, colour anodising slightly more.
2. Profile: concentric ring is standard; truncated type is made to order for ADA and ISO drawings.
3. Fixing: stem or 3M tape.
4. Quantity and destination: the weight saving reduces air freight noticeably on export orders.

Aluminium studs typically sit between PU and stainless steel in price.

Mistakes we see with aluminium studs

• Aluminium near the sea or on pool decks. Use SS 316.
• Steel hammers on anodised studs. Use a rubber mallet.
• Alkaline degreasers in cleaning regimes. Tell the facilities team to use neutral cleaners.
• Silver studs on grey floors with no contrast check. Specify black or gold anodising.
• A single row instead of a 600 mm field.

Typical specification clause

“Tactile warning studs: machined aluminium alloy, Ø35 mm top, 4.5 mm high, concentric ring top, clear [or black / gold] anodised finish, Ø8 mm stem set in epoxy anchor [or 3M self-adhesive backing], at 50 mm centres in fields 600 mm deep across the full hazard width, starting 300 mm from the nosing. Manufacturer: MetalX Engineering Inc., Mumbai, or approved equal.”

Where they are in service

Shopping malls and office campuses across India, covered railway platforms, university buildings, and large housing and township projects where cost per stud mattered.
