Self-Adhesive Tactile Studs (Peel & Stick, 3M Double-Sided Tape)

Also known as: warning buttons, tactile buttons, tactile domes, truncated domes and tactile warning indicators. Whichever term your specification uses, the product on this page is the same self-adhesive tactile studs.

Overview

Many accessibility upgrades happen in buildings that are already open: stations, hospitals, malls and offices where drilling is noisy, dusty and disruptive. Self-adhesive tactile studs let a two-person crew install a complete warning field during a quiet period with nothing more than a cleaning cloth, the positioning template and a rubber mallet. There is no curing time before the floor can be walked on, although the bond continues to strengthen for three days.

MetalX applies a die-cut 3M acrylic foam tape to the flat underside of each stud in the factory, protected by a peel-off liner. The tape is the same family used to bond exterior trim on vehicles and cladding panels, and it tolerates floor cleaning chemicals, temperature swings and UV exposure. The stud itself is identical to our stem-fixed version, so the tactile signal underfoot is unchanged.

Where self-adhesive studs perform best

The tape needs a smooth, dense, clean surface to bond to. Vitrified tiles, polished granite and marble, terrazzo, epoxy floors, sealed concrete and metal all give excellent results. On rough, porous or dusty concrete, on carpet, or where standing water is constant, we recommend stem-fixed studs instead, or a hybrid: self-adhesive tape plus a small bead of construction adhesive.

Material options

• Stainless steel (SS 304 / 316): the standard choice; durable, hygienic and available in PVD colours.
• Brass: warm gold tone for hotels and heritage interiors; see brass tactile studs.
• Aluminium: lightweight and economical, with anodised colour options.
• Polyurethane (PU): six colours, silent underfoot, lowest cost; see PU tactile studs.

Why the tape holds

The tape on our studs is a 3M double-sided acrylic foam tape, die-cut to the exact base of the stud and applied in the factory under pressure. Acrylic foam tapes are used to bond exterior trim to cars and cladding panels to buildings; they work by wetting out onto a dense surface and then continuing to cure for about three days. The foam core takes up small irregularities and thermal movement so the bond is not broken by a trolley wheel or a hot afternoon. What the tape cannot do is bond to dust, wax, moisture or a crumbly surface, which is why almost every failure we have ever been asked about traces back to preparation rather than the tape.

Which floors qualify

Choosing the material

Every material in our range can be supplied with 3M tape, so the choice is about the interior rather than the fixing. Stainless steel for stations, hospitals and most commercial floors; brass or PVD gold for hotels and heritage buildings; anodised aluminium for large budget-driven areas; polyurethane in six colours where contrast against a pale or grey floor is the priority. The stud profile is the same in each, so a project can use different materials in different zones.

How many studs, and how long it takes

Studs sit on a 50 mm grid: 400 per square metre, 240 per running metre of a 600 mm-deep field. A two-person crew installs 400–600 self-adhesive studs an hour on prepared tile, so a stair landing top and bottom, about 1,000 studs, is a two-hour job with no dust, no drilling and no closure. The same job with drilled studs takes two days and a hoarding.

What affects the price

1. Material: PU is the lowest cost, then aluminium, stainless steel and brass.

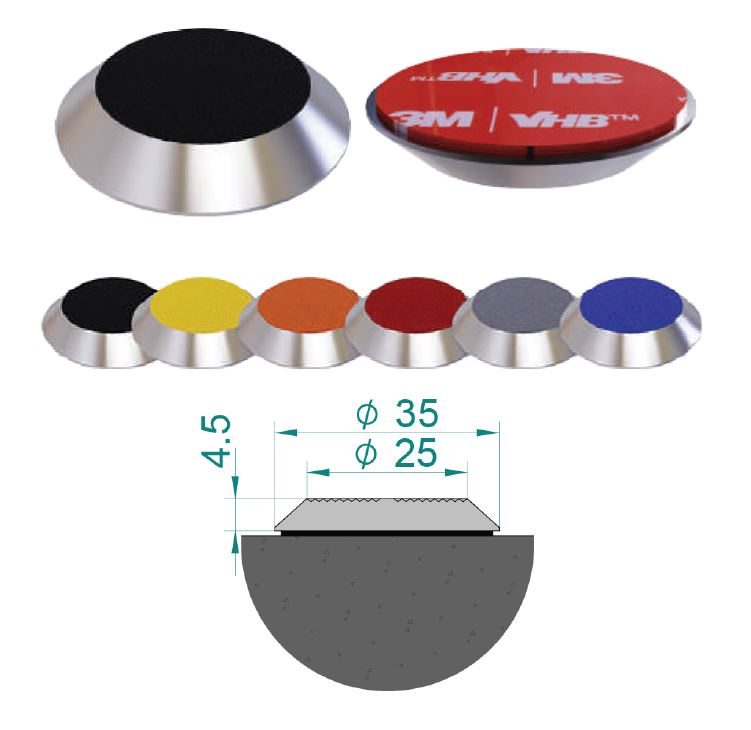

2. Top pattern and finish: concentric ring is the base; carborundum, poly inserts and PVD add operations.
3. Tape: the factory-applied 3M pad adds a small amount per stud compared with a stem.
4. Quantity and destination: volume pricing from a few thousand pieces; studs are light, so air freight is economical.

On tiled floors the installed cost is usually 40–60% below drill-and-fix once labour is counted.

Mistakes we see with self-adhesive studs

• Skipping the alcohol wipe. Dust is the single biggest cause of lifting.
• Installing on a cold floor. Below 10 °C the adhesive does not wet out. Warm the area or wait.
• Wet mopping the same evening. Keep the field dry for 24 hours.
• Placing a stud across a grout joint. Shift the grid a few millimetres so every base sits on solid tile.
• Touching the tape. Skin oils weaken the bond; peel and place without handling the pad.
• Using them on exposed exterior paving. Rain, dust and freeze-thaw call for stem-fixed studs.

Typical specification clause

“Self-adhesive tactile warning studs: solid stainless steel AISI 304 [or 316 / brass / aluminium / polyurethane], Ø35 mm top, 4.5 mm high, concentric ring top, with factory-applied 3M double-sided acrylic foam tape, installed at 50 mm centres in fields 600 mm deep on a surface cleaned with isopropyl alcohol at 10–40 °C, no wet cleaning for 24 hours. Manufacturer: MetalX Engineering Inc., Mumbai, or approved equal.”

Where they are in service

Retrofitted stair landings and lift lobbies in operating metro stations in India, hospital corridors in the UK and Canada, shopping centres in the UAE and Qatar, and office towers and IT campuses across Indian cities.
