Stainless Steel Tactile Studs (SS 304 / SS 316 Warning Indicators)

Also known as: warning buttons, tactile buttons, tactile domes, truncated domes and tactile warning indicators. Whichever term your specification uses, the product on this page is the same stainless steel tactile studs.

Overview

Tactile warning studs are the most widely specified form of tactile ground surface indicator (TGSI) for hard floors because they can be installed into an existing surface without removing it. MetalX Engineering Inc. has manufactured stainless steel tactile studs at its Mumbai factory for more than thirty years, supplying metro rail, airport, hospital and commercial projects in India, the Middle East, Europe and North America.

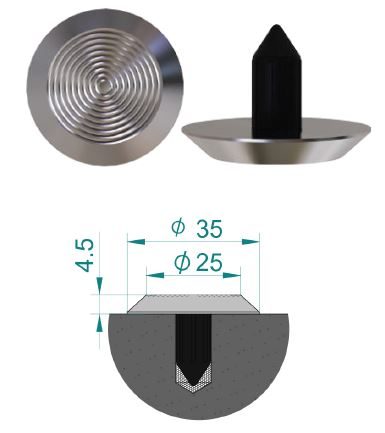

Each stud is turned from solid stainless steel bar on CNC lathes, machined to a 35 mm top diameter and 4.5 mm height, then finished with the selected top pattern. The concentric ring pattern is our default because it gives good slip resistance without collecting dirt. Diamond (knurled) tops give the highest grip for wet outdoor areas, while carborundum-insert and poly-insert tops add an abrasive or coloured centre for traction and visual contrast.

What a stainless steel tactile stud is, and what it is for

A tactile stud is a small raised dome fixed to a floor so that a person who is blind or has low vision can feel it underfoot or with a cane. A field of studs laid in a grid means one thing: stop, there is a hazard or a decision point ahead. That hazard might be the first step of a staircase, the edge of a metro platform, the bottom of a ramp or the kerb at a road crossing. Studs are the warning half of a tactile system; the guiding half is the directional strip, which leads a person to the point where the studs take over.

Stainless steel is the material of choice when the studs must survive the worst conditions a floor sees: monsoon rain, luggage trolleys, floor scrubbers, de-icing salt and thirty years of footfall. Unlike coated or plated studs there is nothing to wear through, and unlike polymer studs there is nothing to crack or fade.

SS 304 or SS 316: which grade should you specify?

SS 304 is the standard choice for indoor floors, covered stations and most urban pavements. SS 316 contains 2–3% molybdenum, which gives it markedly better resistance to chlorides. Our client on a Saudi Arabia metro project selected SS 316 studs for exactly this reason. Both grades are non-magnetic in the annealed condition and are supplied with mill test certificates on request.

If a tender simply says “stainless steel” without a grade, ask. The price difference between 304 and 316 is small compared with the cost of replacing pitted studs on a live platform.

Choosing the top pattern

All six patterns give the same tactile signal. The choice is about grip, dirt, appearance and contrast.

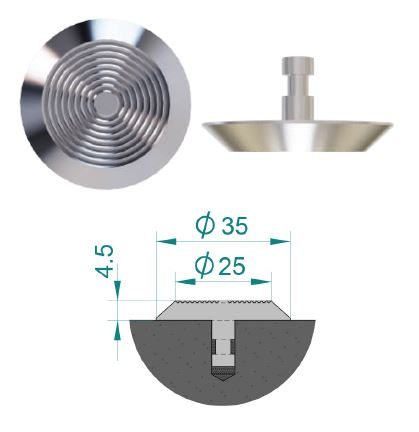

• Concentric rings: the all-round choice. Good wet grip, self-cleaning under foot traffic, neat appearance. Used on most of the studs we ship.

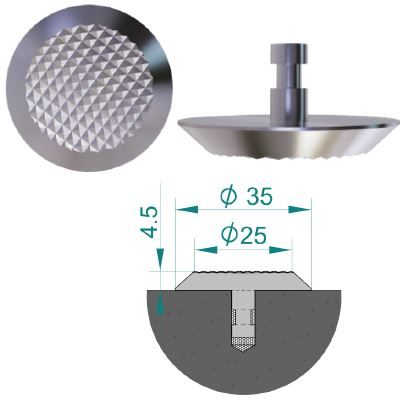

• Diamond (knurled): sharper texture for open-air ramps, kerbs and plazas where the floor is often wet. Holds a little more dirt than rings.
• Plain top: smooth polished dome for interiors where the architect wants the cleanest look. Lower grip, so keep it to dry areas.

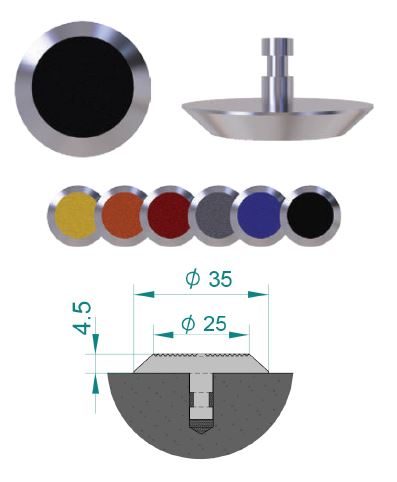

• Carborundum insert: a disc of silicon-carbide grit bonded into the top. The highest wet slip resistance of any stud we make, and the black insert also gives contrast on light floors. Standard on many transport specifications.
• Coloured poly insert: a polyurethane cap in yellow, red, blue, black or grey pressed into the top. Used where the luminance contrast requirement cannot be met by bright steel on a grey floor.
• PVD colour coating: a titanium-nitride layer in gold, rose gold, black or bronze applied to the whole stud. It is harder than the steel and does not chip. Chosen for hotels and premium retail.

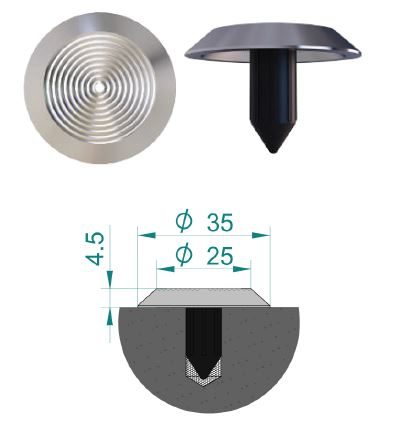

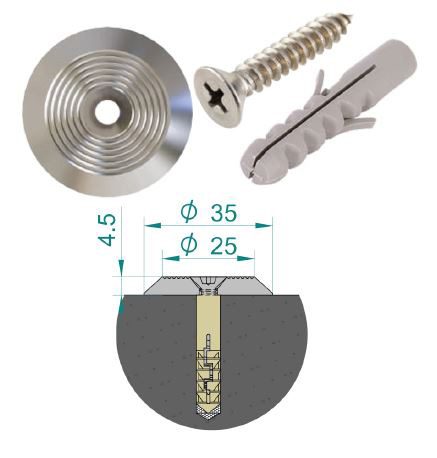

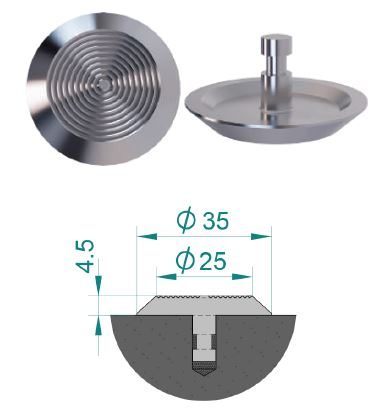

Choosing the fixing

How many studs do you need?

Studs sit on a 50 mm grid, so every 300 × 300 mm square holds 36 studs and every square metre holds 400. Most standards call for a warning field 600 mm deep across the full width of the hazard, which works out to 240 studs per running metre of stair edge, platform edge or kerb ramp. A typical stair landing 2 m wide therefore needs about 480 studs at the top and another 480 at the bottom. Add 2% for damage and setting-out errors. If you send us a floor plan we will mark the fields and count the studs for you.

For long straight runs, compare the cost against integrated stainless steel tiles, which carry 36 studs on one plate and fix with four screws.

What affects the price

We quote every enquiry individually, but the same five things move the price of a stainless steel tactile stud:

1. Grade: SS 316 costs more than SS 304 because the raw bar costs more.
2. Size: a Ø35 mm stud uses more material than a Ø25 mm stud; stem length also matters.
3. Top pattern: plain and concentric ring are the base price; carborundum and poly inserts add an operation; PVD coating adds a further process.
4. Fixing: 3M self-adhesive backing costs slightly more per stud than a plain stem, but saves far more on installation.
5. Quantity and destination: volume pricing applies from a few thousand pieces; freight is quoted to your city by air or sea.

Studs are packed 500 or 1,000 to a carton with a fibreboard drilling template in every order. Standard items ship from stock in Mumbai; non-stock items are made in 3–4 working days.

Mistakes we see on site, and how to avoid them

• Field too shallow. A single row of studs is not a warning field. Lay at least 600 mm depth in the direction of travel.
• Field starting at the nosing. Most standards want the field to start about 300 mm before the first step or platform edge so the user has time to stop.
• Dust left in the drilled holes. Epoxy does not bond to dust. Blow and brush every hole before injecting adhesive.
• Bars used as a warning. Directional strips mean “go”, studs mean “stop”. Never swap them.
• No contrast check. Bright steel on grey granite can fail a luminance contrast audit. Specify carborundum inserts, poly inserts or PVD colour if the floor is grey.
• Wrong grade near the sea. SS 304 on a coastal platform will tea-stain within a couple of monsoons. Use SS 316.

Typical specification clause

“Tactile warning studs: solid stainless steel AISI 316 [or 304], Ø35 mm top, 4.5 mm high, concentric ring top [or carborundum insert], with Ø8 mm stem set in epoxy anchor [or 3M self-adhesive backing], installed at 50 mm centres in fields 600 mm deep across the full hazard width, starting 300 mm from the nosing or edge, with manufacturer’s template and mill test certificate. Manufacturer: MetalX Engineering Inc., Mumbai, or approved equal.”

Where our stainless steel studs are already in service

Metro platforms and concourses in India and Saudi Arabia, airport terminals in the Gulf, hospital campuses in the UK and Canada, university buildings in Germany, shopping centres in the UAE and Qatar, and municipal footpaths and smart-city projects across Indian cities from Mumbai and Delhi to Bengaluru, Hyderabad and Chennai. Ask us for a reference in your region.
